AYAN-R-1020

AYAN-R-1020

Application:

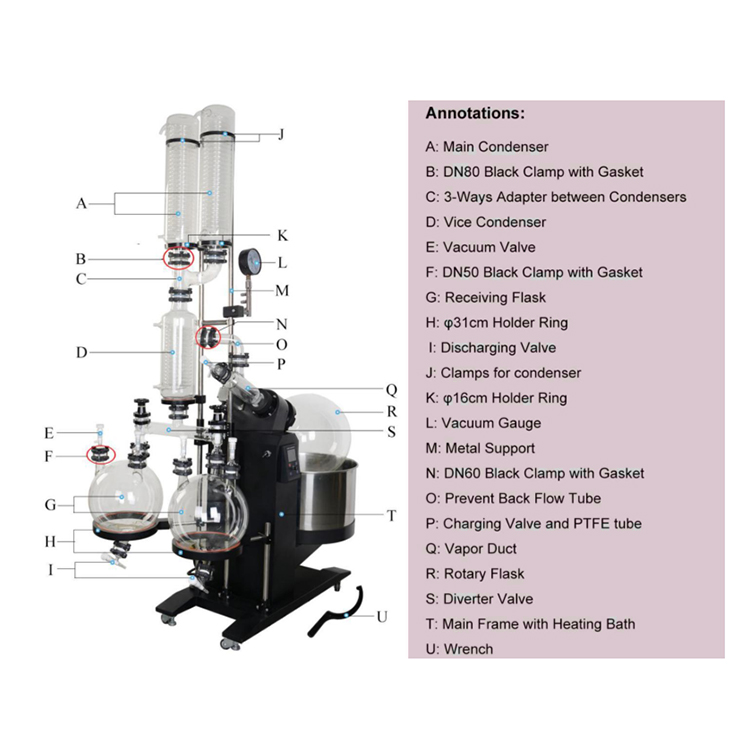

Rotary Evaporator is a laboratory common equipment which composed of motor, distilling flask, heating bath, condenser, receiving flask and so on. It's mainly used for continuous distillation of volatile solvents under reduced pressure conditions., applied to Chemical,Pharmaceutical, Biomedical, Plant and other fields. The rotary flask is a round bottomed flask with a standard flange-mouth connection,connected to a vacuum pump through a highly reflux condenser, the opening on the condenser’s bottom is connected to the receiving flask with a auto-shift valve, can be continuous collection of evaporated organic solvent without affecting the vacuum distillation condition, the interconnecting coil in the condenser can match a cooling device to use. The heating bath is electric lift, can use the water(0-99℃) or oil (0-200℃) to heat.If your solvent is liquid, can use a tube connector the charging valve with your solvent, then open vacuum pump can adding the liquid to the rotary flask directly.

Characteristics:

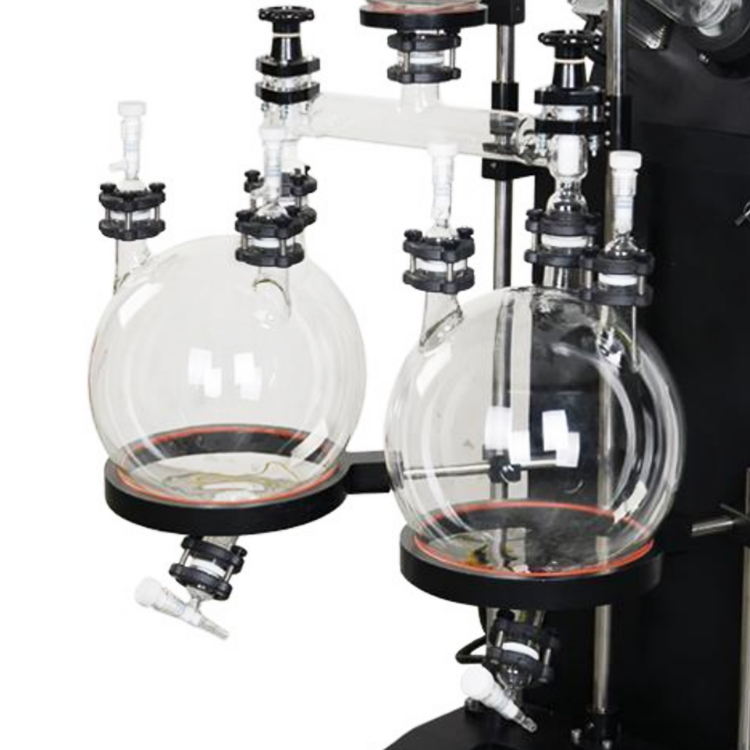

  • With dual condenser and receiving flask design, high efficiency, practical and economical;
  • The PTFE and rubber gasket seal assembly, anti-corrosion, no pollution and long life;
  • Advanced frequency conversion, temperature control accurate to 0.1℃;
  • Unique vacuum auto-shift valve, can be continuous collected without affecting the system vacuum, improve the work efficiency;
  • The PTEE discharge valve, corrosion resistance, no pollution;
  • All-in-one electric lift heating bath, beautiful & convenient.
  • We provide customized services
After-Sale Service:

1. The period, scope and condition of the warranty.
①We offer 1 years warranty. During the warranty time, because of manufacturing&quality problem, we offer replacement, maintenance service.
②Glass parts and Sealing rings are easy to broke, they are not in the warranty.
③The damage caused by the transportation
problem shall be borne by the seller.
2. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better.
we will find the problem and tell you how to solve it. If there is a broken, we will send you
a new part, and it is free in the warranty period.
3. How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small
parts we shipping by Express.
4. The Final explanation right belongs to the company
Model
AYAN-R-1010
AYAN-R-1020
AYAN-R-1030
AYAN-R-1050
Rotary Flask
10L Φ95mm
(Flange mouth )
20L Φ125mm
(Flange mouth )
30L Φ125mm
(Flange mouth )
50L Φ125mm
(Flange mouth )
Receiving Flask
5L*2Pcs
10L*2Pcs
20L*2Pcs
20L*2Pcs
Rotary Speed
20~120r/min
20~120r/min
20~90r/min
20~90r/min
Rotary Motor
250W
Condenser
2Pcs*Main Condenser+Assistant Condenser
Heating Bath
Stainless Steel Water/oil Bath
Temp. Range
Water: RT~99℃ Oil: RT~200℃, ±0.1℃
Attainable Vacuum
≤0.1Mpa (1Bar, 750Torr)
Evaporative Power
H2O≥3.2L/h,
Alcohol≥6.5L/h
H2O≥5L/h,
Alcohol≥11L/h
H2O≥7L/h,
Alcohol≥15.3L/h
H2O≥9L/h,
Alcohol≥19L/h
Lift Type
Electric Lift
Lifting Stroke
0~200mm
0~200mm
0~200mm
0~200mm
Bath Power
3KW
3KW
6KW
6KW
Voltage
220V/60Hz, 1-Phase
